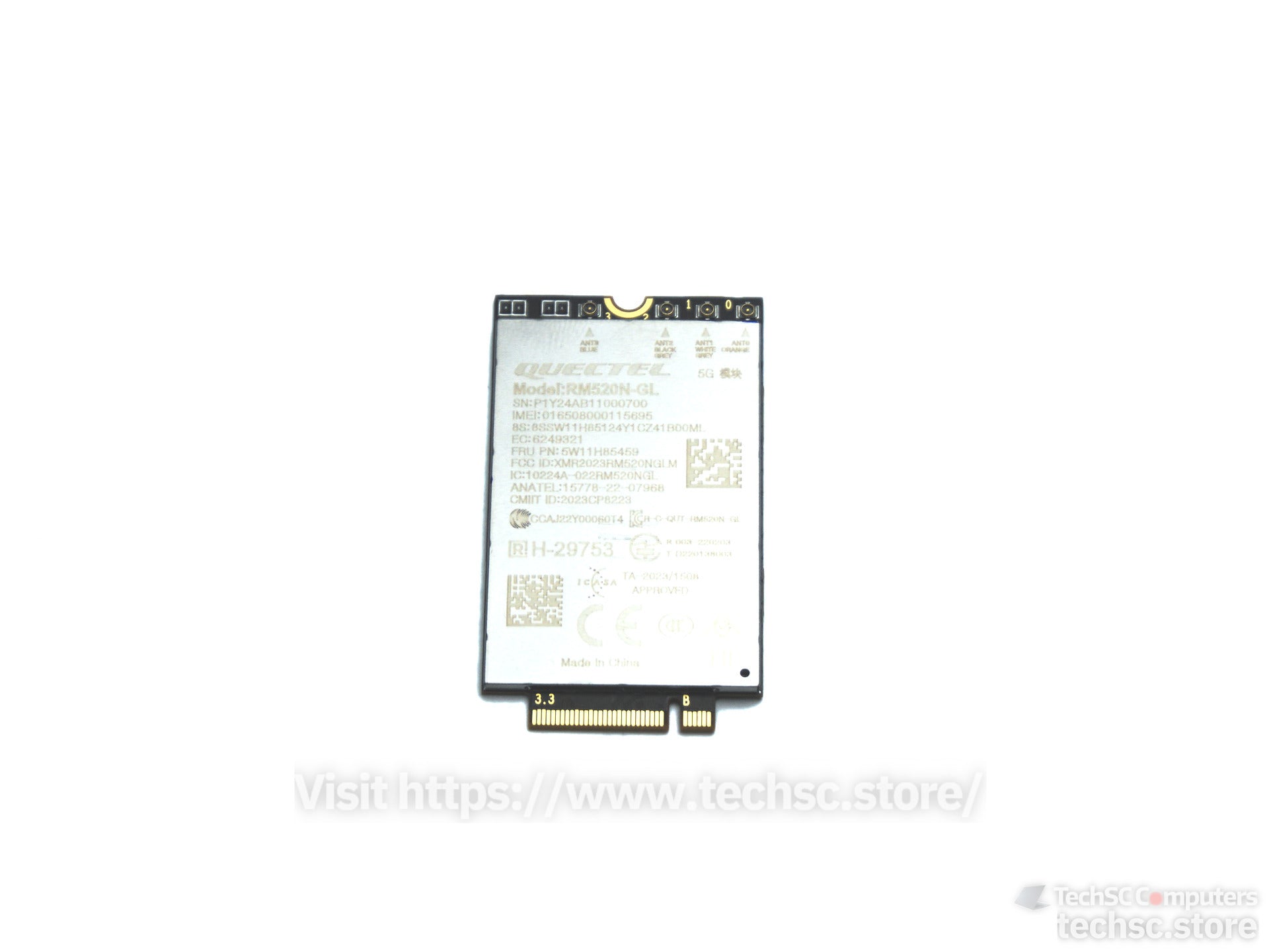

Name: Lenovo Quectel RM520-N 5G/LTE CAT20 3400Mbps WWAN M.2 Card (5W11H85459)
Brand: Lenovo
Price: 179.00 AUD
Availability: InStock

Lenovo Quectel RM520-N 5G/LTE CAT20 3400Mbps WWAN M.2 Card (5W11H85459)

All cards fully unlocked, local stock with 100% Australian-compliance, genuine and original, with quick shipping!

Don't risk imitations or slow shipping from unknown suppliers.

MODEL: RM520-N 5G/LTE CAT20 3400Mbps
FRU P/N: 5W11H85459
EC: 6249321

NOTE: Item is tested working and OK, IMEI may differ from picture. Buyer assumes responsibility for checking compatibility with laptop before buying. Machine should have requisite antennas and SIM-card tray.

Suitable models (guide only, may also include others not listed):

- ThinkPad T16 Gen 3 Intel (MT 21MN/21MQ)
- ThinkPad T16 Gen 4 AMD (MT 21QN/21QQ)
- ThinkPad X1 Yoga/2-in-1 Gen 9 (MT 21KE/21KF)
- ThinkPad X1 Yoga/2-in-1 Gen 10 (MT 21NU/21NV/21Q0/21Q1)
- ThinkPad P16S Gen 4 (MT 21QR/21QS/21RX/21RY)

Not suitable for your machine or not sure which one you need?
See our range of other WWAN cards or send us a message.

---

Manufacturer information:

Key features

    5G/4G/3G multi-mode module in M.2 form factor, optimized for IoT and eMBB applications
    Worldwide 5G and LTE-A coverage
    Supports NSA and SA modes
    Multi-constellation GNSS receiver available for applications requiring fast and accurate positioning in any environment
    Feature refinements: DFOTA and VoLTE (optional)

The RM520N is a series of 5G IoT modules specially optimized for IoT/eMBB applications, designed in an M.2 form factor in accordance with the 3GPP Release 16 specification, which supports both 5G NSA and SA modes. The RM520N is compatible with Quectel’s 5G module series RM50xQ, LTE-A Cat 6 module EM06, Cat 12 module series EM12/EM12xR/EM120K, and Cat 16 module EM160R-GL, facilitating migration from LTE-A to 5G.
The RM520N is an industrial-grade module for industrial and commercial applications only. It covers nearly all the mainstream carriers worldwide and supports Qualcomm® IZat location technology Gen9C Lite (GPS, GLONASS, BDS and Galileo). The integrated GNSS receiver greatly simplifies the product design and provides quicker, more accurate and dependable positioning capability.

Thanks to a rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB and PCIe drivers for Windows 7/8/8.1/10, Linux, and Android) the module can be adopted in a wide range of eMBB and IoT applications including industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, video transmission, and digital signage.

5G Sub-6RM520N-GL

Region/OperatorGlobal

Dimensions (mm)30.0 × 52.0 × 2.3

Weight (g)Appr. 8.7

Supply Voltage Range3.135–4.4 V, typical 3.7 V

Power Consumption195 μA @ Power down

4.7 mA @ Sleep

51 mA @ USB 2.0, Idle

70 mA @ USB 3.0, Idle

Temperature Range

Operation Temperature-30 °C to +75 °C

Extended Temperature-40 °C to +85 °C

Frequency Bands

5G NR

LTE

UMTS

NSAn1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79

SAn1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79

LTE-FDDB1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71

LTE-TDDB34/ 38/ 39/ 40/ 41/ 42/ 43/ 48

LAAB46

WCDMAB1/ 2/ 4/ 5/ 8/ 19

GNSS

GPS/ GLONASS/ BDS/ Galileo

Certifications

RegulatoryGCF/ PTCRB/ CE/ Anatel*/ CCC/ RCM/ IC/ FCC/ JATE*/ TELEC*/ KC*/ NCC*

CarrierT-Mobile*/ AT&T*/ Verizon*/ Deutsche Telekom*

OthersRoHS

Data Rate (Max.) 1

5G SA Sub-6DL 2.4 Gbps; UL 900 Mbps

5G NSA Sub-6DL 3.4 Gbps; UL 550 Mbps

LTEDL 1.6 Gbps; UL 200 Mbps

WCDMADL 42 Mbps; UL 5.76 Mbps

Interface

(U)SIM×2

USB 2.0×1

USB 3.0/3.1×1

PCIe 4.0×1

Antenna (Sub-6/GNSS)×4

Voice

Voice

Digital Audio and VoLTE (Voice over LTE) (Optional)

Enhanced Features

eSIM*Optional

DTMF*Supported

DFOTA*Supported

(U)SIM Card DetectionOptional
