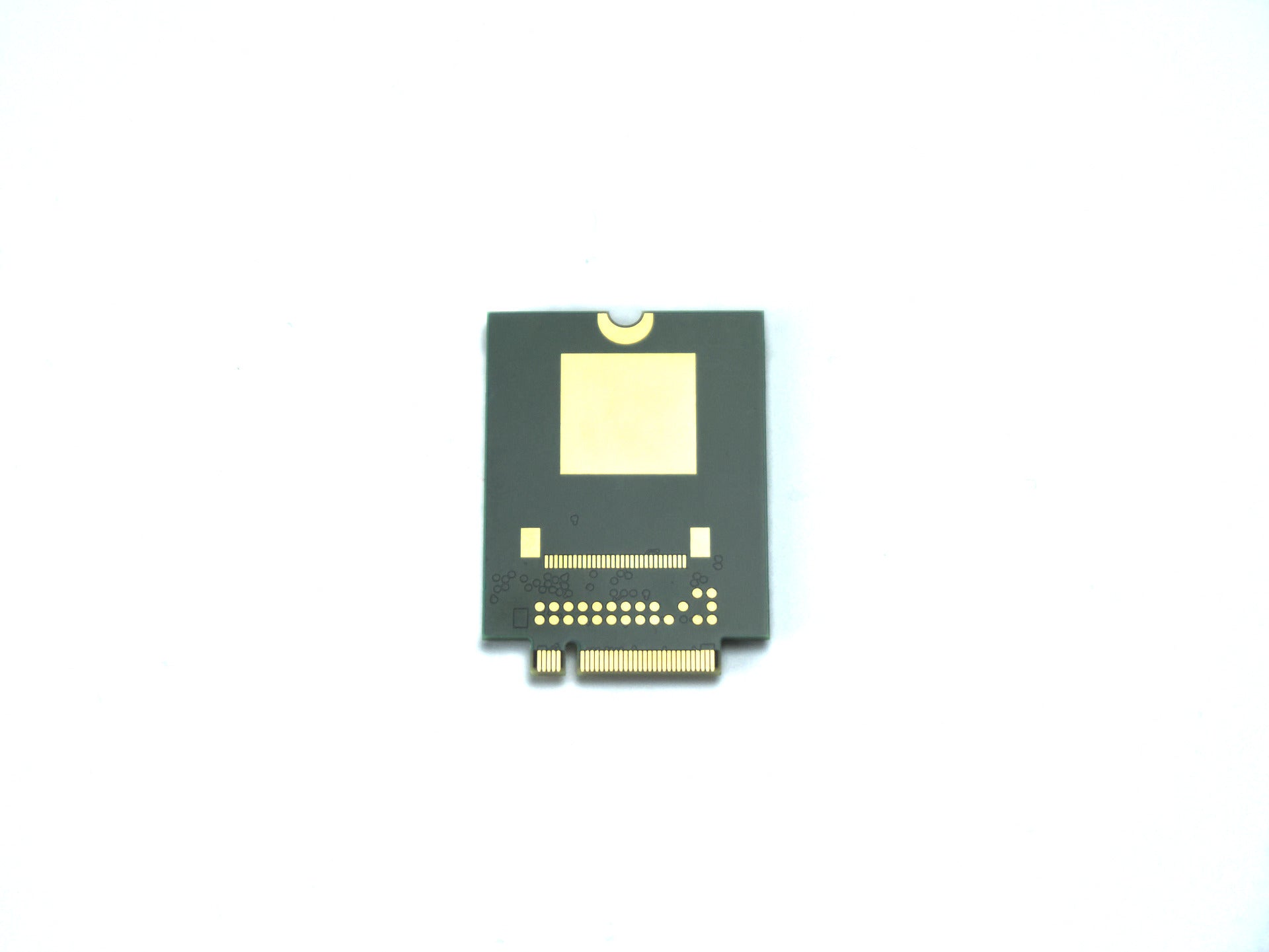

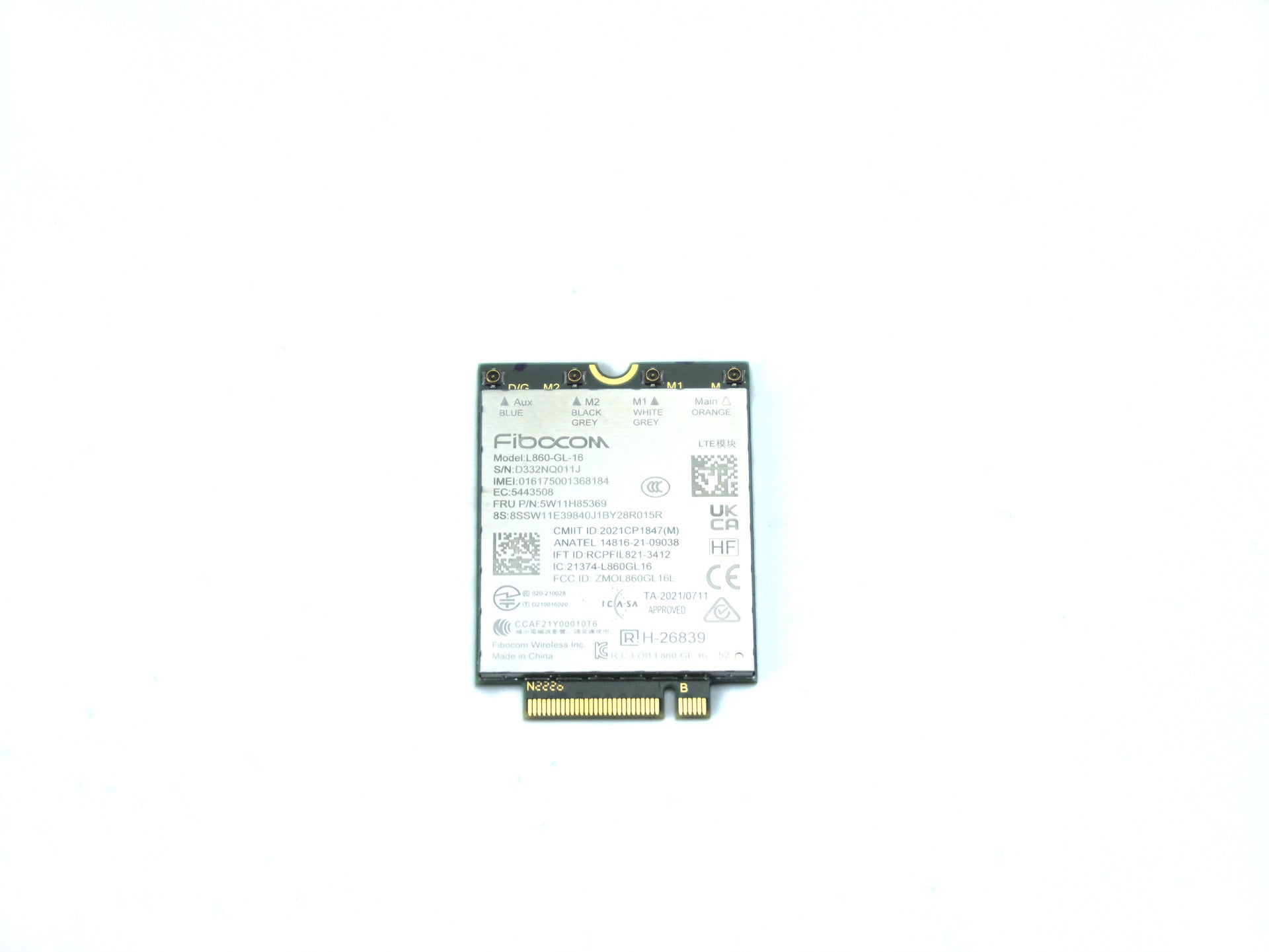

Lenovo Fibocom L860-GL Genuine 4G LTE CAT16 WWAN M.2 Card (5W11H85369)
Sale price
$85.00
Regular price
$99.00
Save $14.00

Lenovo Fibocom L860-GL Genuine 4G LTE CAT16 WWAN M.2 Card (5W11H85369)
Sale price
$85.00
Regular price
$99.00
Save $14.00

Lenovo
Lenovo Fibocom L860-GL Genuine 4G LTE CAT16 WWAN M.2 Card (5W11H85369)
Genuine Fibocom L860-GL-16 4G LTE WWAN M.2 Card (5W11H85369)
All cards fully unlocked, local stock with 100% Australian-compliance, genuine and original, with quick shipping!
Don't risk imitations or slow shipping from unknown suppliers.
FRU PN: 5W11H85369
EC: 5443508
MPN: 8SSW11E39840J1BY28R015R
FCC ID: ZMOL860GL16
IC: 21374-L860GL16
NOTE: Item is tested working and OK, IMEI may differ from picture. Buyer assumes responsibility for checking compatibility with laptop before buying. Machine should have requisite antennas and SIM-card tray.
Suitable models (guide only, may also include others not listed):
- ThinkPad X1 Nano Gen 2 Intel (MT 21E8/21E9)
- ThinkPad X1 Yoga Gen 7 Intel (MT 21CD/21CE)
Not suitable for your machine or not sure which one you need?
See our range of other WWAN cards or send us a message.
---
Manufacturer information:
ThinkPad Fibocom L860-GL-16 XMM7560 CAT16 4G PCIE M.2 3042 WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1 Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
Supported Band
FDD-LTE:
B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71
TDD-LTE:
B34/38/39/40/41(HPUE)/421)/43/48 LAA Band 46 Receiver only
WCDMA/HSPA+:
B1/2/4/5/8 GNSS:GPS/BDS/GLONASS/Galileo 1)
FDD-LTE:
B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71
TDD-LTE:
B34/38/39/40/41(HPUE)/421)/43/48 LAA Band 46 Receiver only
WCDMA/HSPA+:
B1/2/4/5/8 GNSS:GPS/BDS/GLONASS/Galileo 1)
Weight 6.2 g
Hardware Requirements M.2 Key-B
Warranty Type Customer Replaceable Unit (CRU)
Brand ThinkPad
OS Requirements Windows 10, Windows 11
Packed Weight 0.03 kg
Other Electrical Specifications
Antenna Connector:
WWAN Antenna x 4, Support 4x4 MIMO Protocol Stack: IPV4/IPV6 Firmware Update: PCIe
WWAN Antenna x 4, Support 4x4 MIMO Protocol Stack: IPV4/IPV6 Firmware Update: PCIe
Other Operating Environment
Extended operating temperature:
–20℃ to +65℃ Storage temperature: –40℃ to +85℃
Extended operating temperature:
–20℃ to +65℃ Storage temperature: –40℃ to +85℃
Maximum Operating Temperature 55℃
Minimum Operating Temperature -10°C
Maximum Relative Humidity (%) 95%
Minimum Relative Humidity (%) 5%
Voltage DC 3.135V to 4.4V, typical 3.3V
Interface: M.2 Key-B
Agency Approvals
CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
