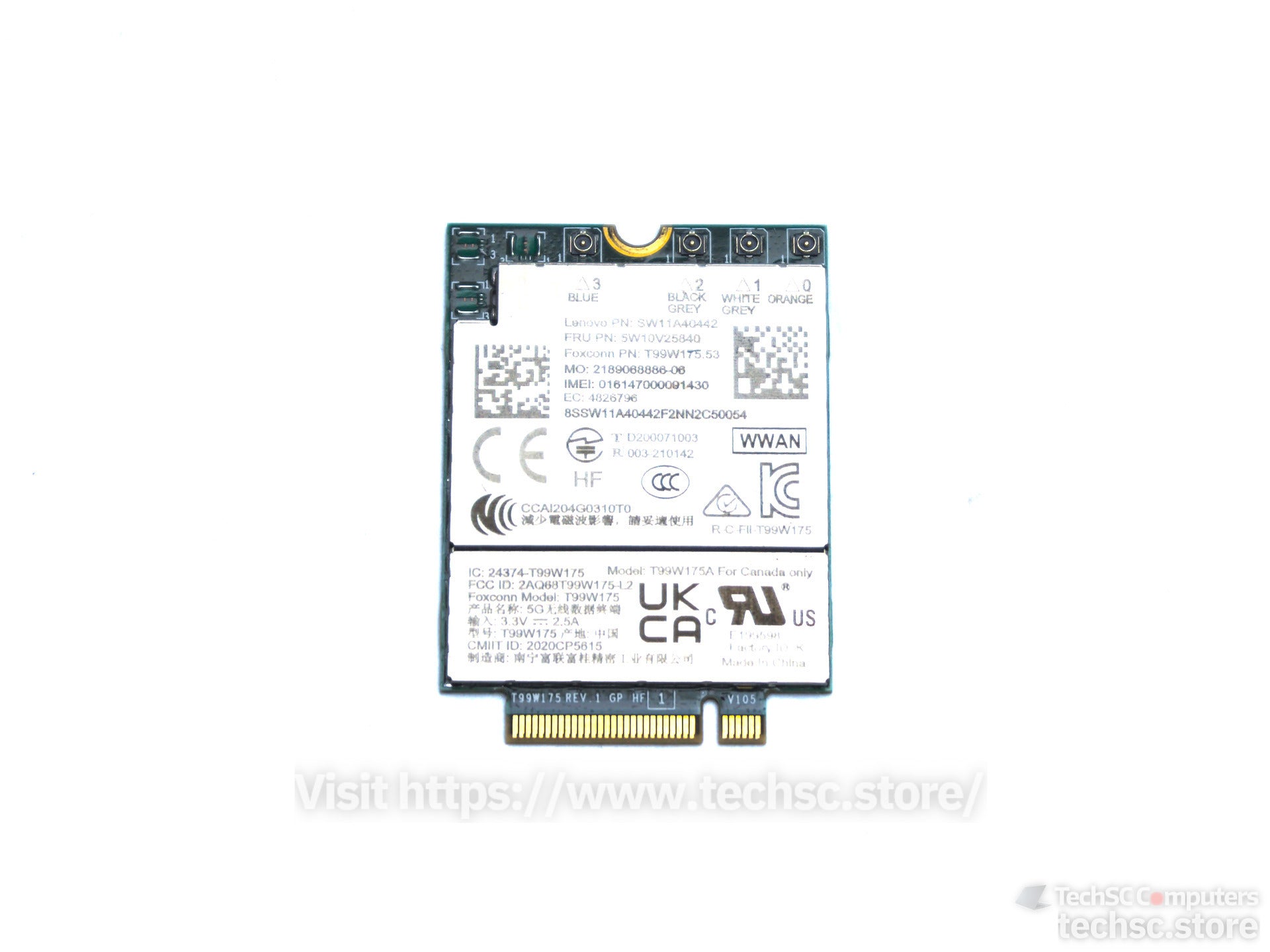

Lenovo Snapdragon X55 5G/LTE CAT22 4000Mbps WWAN M.2 Card (5W10V25840)

Lenovo Qualcomm Snapdragon X55 5G/LTE WWAN CAT22 M.2 Card (5W10V25840)

All cards fully unlocked, local stock with 100% Australian-compliance, genuine and original, with quick shipping! Don't risk imitations or slow shipping from unknown suppliers.

MODEL: Snapdragon X55 5G/LTE 4Gbps
FRU P/N: SW11A40442
EC: 4826796

NOTE: Item is fully tested working and OK, IMEI may differ from picture. Buyer assumes responsibility for checking compatibility with laptop before buying. Machine should have requisite antennas and SIM-card tray.

Suitable models (guide only, may also include others not listed):

- ThinkPad X1 Nano Gen 2 (MT 21E8/21E9)
- ThinkPad P1 Gen 6 (MT 21FV, 21FW)

Not suitable for your machine or not sure which one you need?
See our range of other WWAN cards or send us a message.

---

Manufacturer information (for X55 range):

Key features

Integrated 5G to 2G multi-mode support
Supports virtually any available spectrum band, mode or combination
5G/4G spectrum sharing
Enhanced network capacity with full-dimension MIMO (FD-MIMO) support
Multi-antenna mmWave beamforming architecture support
RF
RF Front-End (RFFE) Features
5G Adaptive Antenna Tuning
Cellular Modem-RF
Modem Name
Snapdragon™ X55 5G Modem-RF system

Peak Download Speed
Up to 7.5 Gbps, Up to 2.5 Gbps

Peak Upload Speed
Up to 3 Gbps, Up to 0.316 Gbps

Cellular Modem-RF Specs
7x20 MHz carrier aggregation (DL), 200 MHz bandwidth (sub-6 GHz), 8 carriers (mmWave), 3x20 MHz carrier aggregation (UL), 800 MHz bandwidth (mmWave)
Performance Enhancement Technologies
100 MHz envelope tracking, Adaptive antenna tuning, Uplink Data Compression (UDC), 5G envelope tracking

Cellular Technology
LTE Broadcast, TD-SCDMA, GSM/EDGE, LAA, 5G NR, 5G/4G spectrum sharing, LTE FDD, SA (standalone), NSA (non-standalone), CDMA 1x, 5G NR TDD, NSA, WCDMA (DC-HSUPA), EV-DO, 5G NR FDD, sub-6 GHz, WCDMA (DB-DC-HSDPA), TDD, LTE TDD support for CBRS, FDD, mmWave, LTE TDD

Multi SIM
5G Dual SIM
