Name: Lenovo Fibocom L860-GL Genuine 4G LTE CAT16 WWAN M.2 Card (5W10V25828)
Brand: Lenovo
Price: 89.00 AUD
Availability: InStock

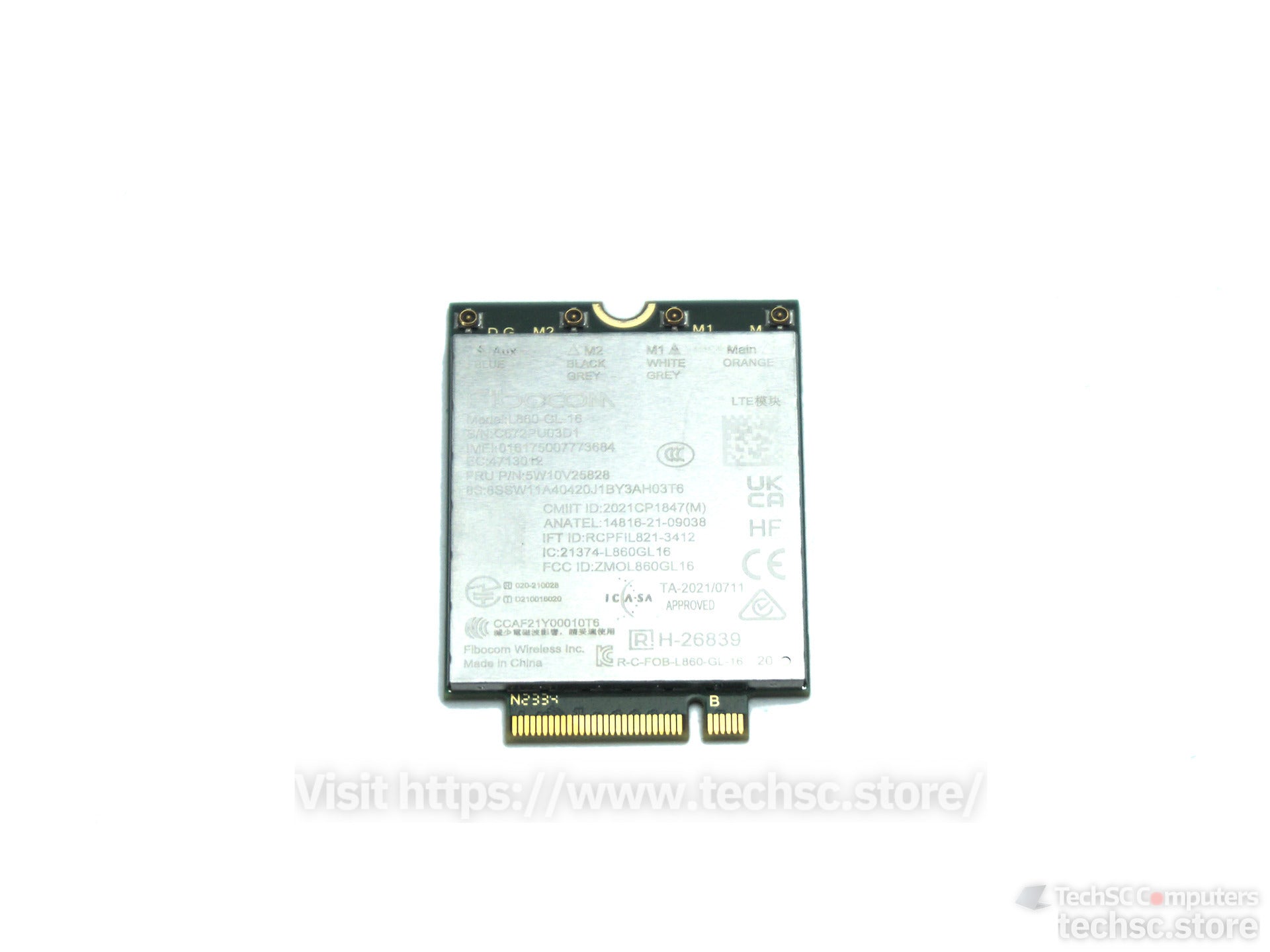

Genuine Fibocom L860-GL-16 4G LTE WWAN M.2 Card (5W10V25828)

All cards fully unlocked, local stock with 100% Australian-compliance, genuine and original, with quick shipping!

Don't risk imitations or slow shipping from unknown suppliers.

FRU PN: 5W10V25828

EC: 4713012

NOTE: Item is tested working and OK, IMEI may differ from picture. Buyer assumes responsibility for checking compatibility with laptop before buying. Machine should have requisite antennas and SIM-card tray.

Suitable models (guide only, may also include others not listed):

13":
X1 Nano Gen 2 Intel        21E8/21E9
Z13 Gen 1 AMD        21D2/21D3
L13 Gen 3 Intel        21B3/21B4
L13 Gen 4 AMD        21FN/21FQ
L13 Gen 4 Intel        21FG/21FH
L13 Yoga Gen 3 Intel    21B5/21B6
L13 Yoga Gen 4 AMD    21FR/21FS
L13 Yoga Gen 4 Intel    21FJ/21FK
X13 Gen 3 AMD        21CM/21CN
X13 Gen 3 Intel        21BN/21BQ
X13 Gen 4 AMD        21J3/21J4
X13 Gen 4 Intel        21EX/21EY
X13 Yoga Gen 3 Intel    21AW/21AX
X13 Yoga Gen 4 Intel    21F2/21F3

14":
L14 Gen 3 Intel        21C1/21C2
L14 Gen 4 AMD        21H5/21H6
L14 Gen 4 Intel        21H1/21H2
P14S Gen 3 Intel    21AK/21AL
T14 Gen 3 Intel        21AH/21AJ
T14S Gen 3 AMD    21CQ/21CR
T14S Gen 3 Intel    21BR/21BS
T14S Gen 4 AMD    21F8/21F9
T14S Gen 4 Intel    21F6/21F7

15.6":
L15 Gen 3 AMD        21C7/21C8
L15 Gen 3 Intel        21C3/21C4
L15 Gen 4 AMD        21H7/21H8
L15 Gen 4 Intel        21H3/21H4
P15V Gen 3 Intel    21D8/21D9
T15P Gen 3 Intel    21DA/21DB

16":
T16 Gen 1 Intel        21BV/21BW
P16 Gen 1 Intel        21D6/21D7
P16S Gen 1 Intel    21BT/21BU
P16V Gen 1 AMD    21FE/21FF
P16V Gen 1 Intel    21FC/21FD
P1 Gen 6 Intel        21FV/21FW
Z16 Gen 1 AMD        21D4/21D5

Not suitable for your machine or not sure which one you need?
See our range of other WWAN cards or send us a message.

---

Manufacturer information:

ThinkPad Fibocom L860-GL-16 XMM7560 CAT16 4G PCIE M.2 3042 WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1 Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.

Supported Band

FDD-LTE:
B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71

TDD-LTE:
B34/38/39/40/41(HPUE)/421)/43/48 LAA Band 46 Receiver only

WCDMA/HSPA+:
B1/2/4/5/8 GNSS:GPS/BDS/GLONASS/Galileo 1)

Weight 6.2 g

Hardware Requirements M.2 Key-B

Warranty Type Customer Replaceable Unit (CRU)

Brand ThinkPad

OS Requirements Windows 10, Windows 11

Packed Weight 0.03 kg

Other Electrical Specifications

Antenna Connector:
WWAN Antenna x 4, Support 4x4 MIMO Protocol Stack: IPV4/IPV6 Firmware Update: PCIe

Other Operating Environment
Extended operating temperature:
–20℃ to +65℃ Storage temperature: –40℃ to +85℃

Maximum Operating Temperature 55℃

Minimum Operating Temperature -10°C

Maximum Relative Humidity (%) 95%

Minimum Relative Humidity (%) 5%

Voltage DC 3.135V to 4.4V, typical 3.3V

Other Physical Specifications
Interface: M.2 Key-B

Agency Approvals
CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
