Lenovo Quectel EM120R-GL 4G LTE CAT12 600Mbps WWAN M.2 Card for X1 Carbon Gen 9 (5W10V25821)
Lenovo Quectel EM120R-GL 4G LTE CAT12 600Mbps WWAN M.2 Card for X1 Carbon Gen 9 (5W10V25821)

Lenovo Quectel EM120R-GL 4G LTE CAT12 600Mbps WWAN M.2 Card for X1 Carbon Gen 9 (5W10V25821)

$39.00 $59.00
Save $20.00
Only 8 units left
Lenovo Quectel EM120R-GL 4G LTE CAT12 600Mbps WWAN M.2 Card for X1 Carbon Gen 9 (5W10V25821)
Lenovo

Lenovo Quectel EM120R-GL 4G LTE CAT12 600Mbps WWAN M.2 Card for X1 Carbon Gen 9 (5W10V25821)

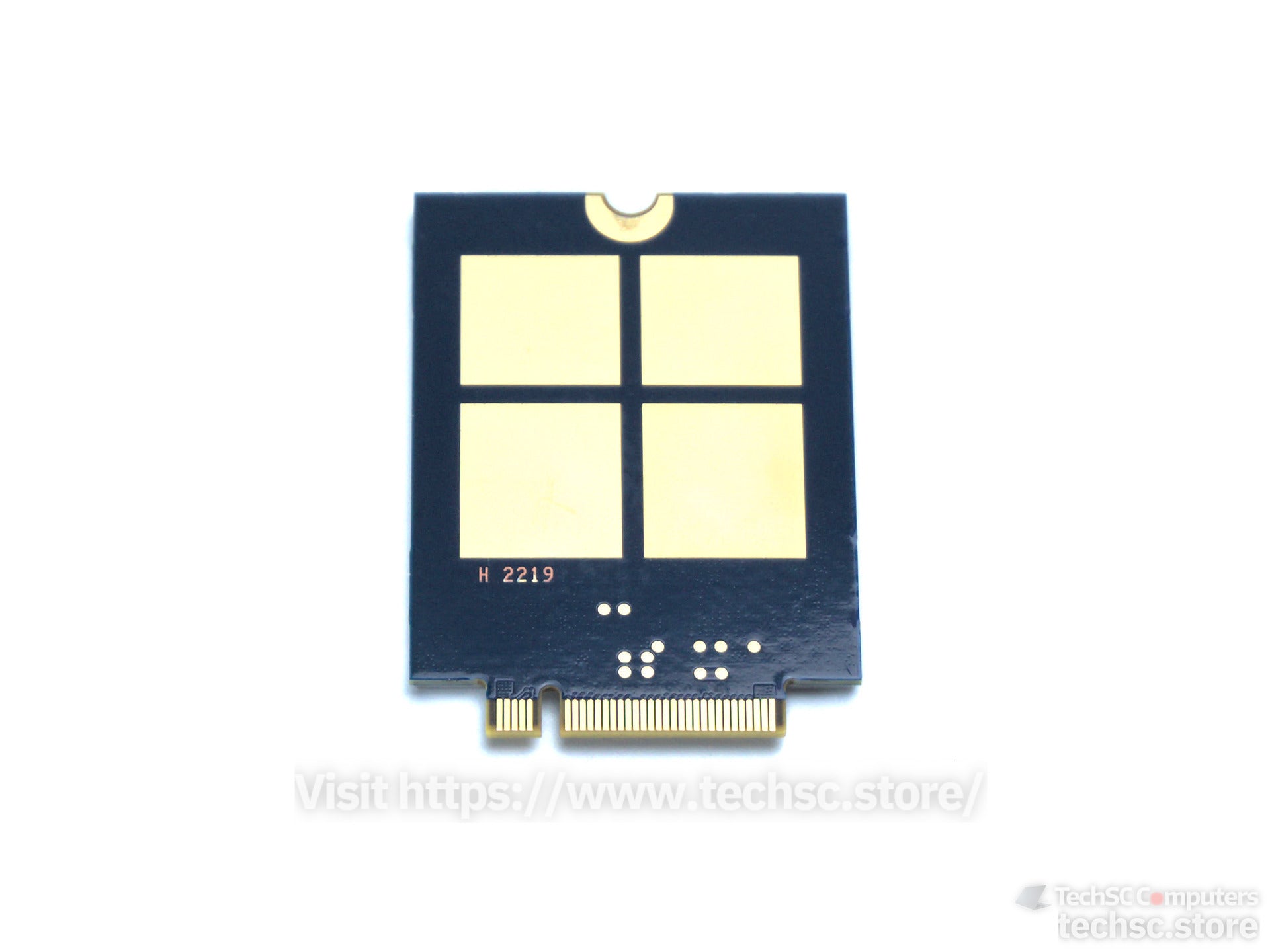

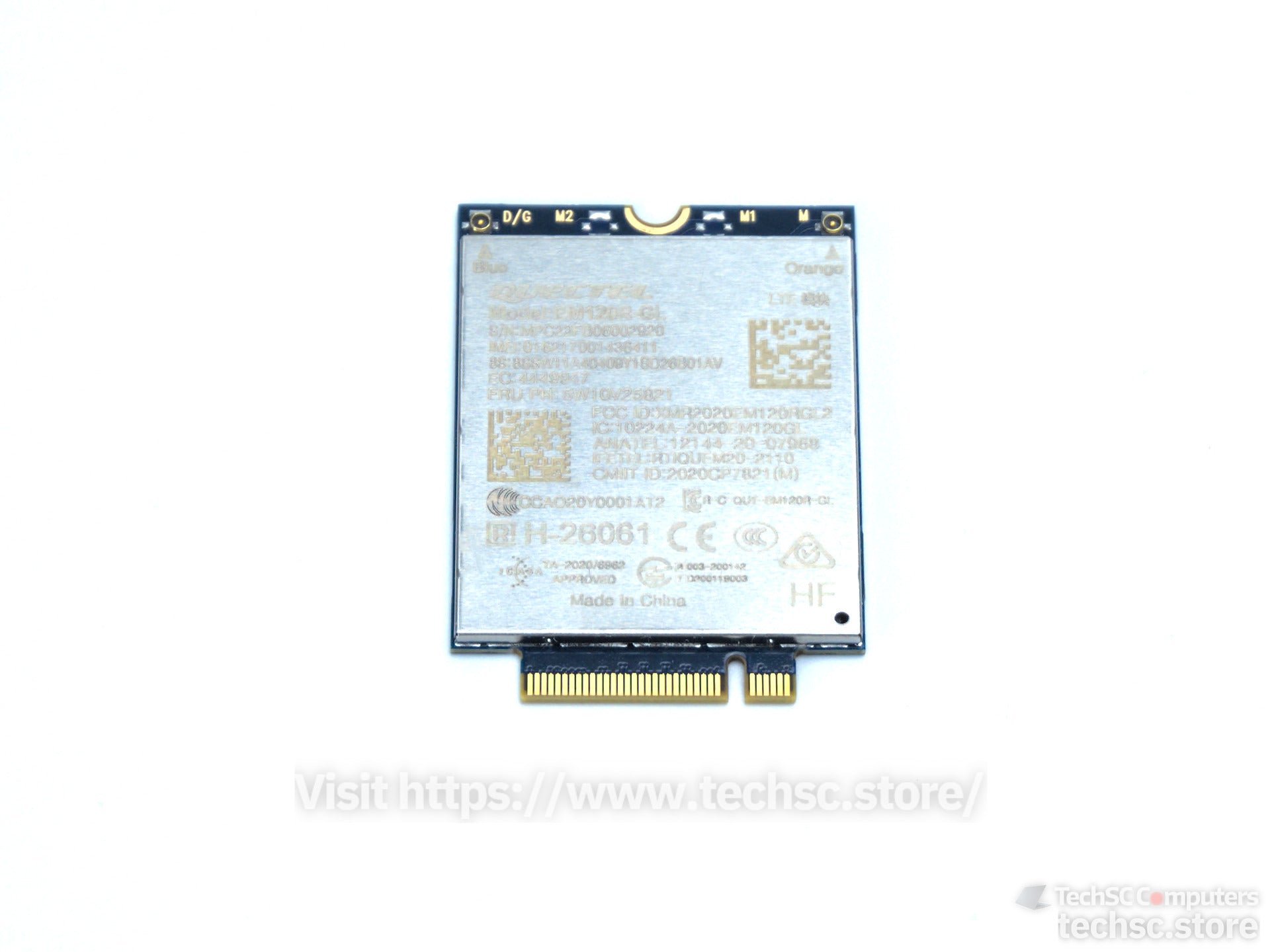

Lenovo Quectel EM120R-GL LTE CAT12 600Mbps WWAN M.2 Card (5W10V25821)

All cards fully unlocked, local stock with 100% Australian-compliance, genuine and original, with quick shipping! Don't risk imitations or slow shipping from unknown suppliers.

MODEL: EM120R-GL LTE CAT12 600Mbps
FRU P/N: 5W10V25821
EC: 4449947

NOTE: Item is fully tested working and OK, IMEI may differ from picture. Buyer assumes responsibility for checking compatibility with laptop before buying. Machine should have requisite antennas and SIM-card tray.

Suitable models (guide only, may also include others not listed):

- ThinkPad X1 Carbon Gen 9 (MT 20XW/20XX)

Not suitable for your machine or not sure which one you need?
See our range of other WWAN cards or send us a message.

---

Manufacturer information:

Quectel EM120R-GL is an LTE Advanced Category 12 module

Adopting the 3GPP Release 14 technology, it supports a theoretical downlink peak data rate of 600 Mbps and a theoretical uplink peak data rate of 150 Mbps. Designed in M.2 form factor, the module is compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 modules EM12-G/ EM121R-GL and 5G modules RM500Q/RM502Q Series, which facilitates customers’ migration between different modules. EM120R-GL is designed for global market and nearly covers all the mainstream carriers worldwide. The module supports Qualcomm® IZat™ location technology Gen9-VT (GPS, GLONASS, BeiDou/Compass and Galileo). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android/optional Built-in eSIM) extend the applicability of the module to a wide range of applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, and digital signage, etc.

Key features:

LTE Cat 12 module with M.2 form factor
Support DL 3 Carrier Aggregation and 256QAM
Worldwide LTE and UMTS/HSPA+ coverage
Support PCIe Gen2 interface for PC/Laptop application
Built-in eSIM (optional)
DSSA Low power mode
Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29①/B30/B32①/B66
LTE-TDD B38/B39/B40/B41/B42/B43/B46① (LAA)/B48 (CBRS)

Full specifications: https://www.quectel.com/product/lte-a-em120r-gl
