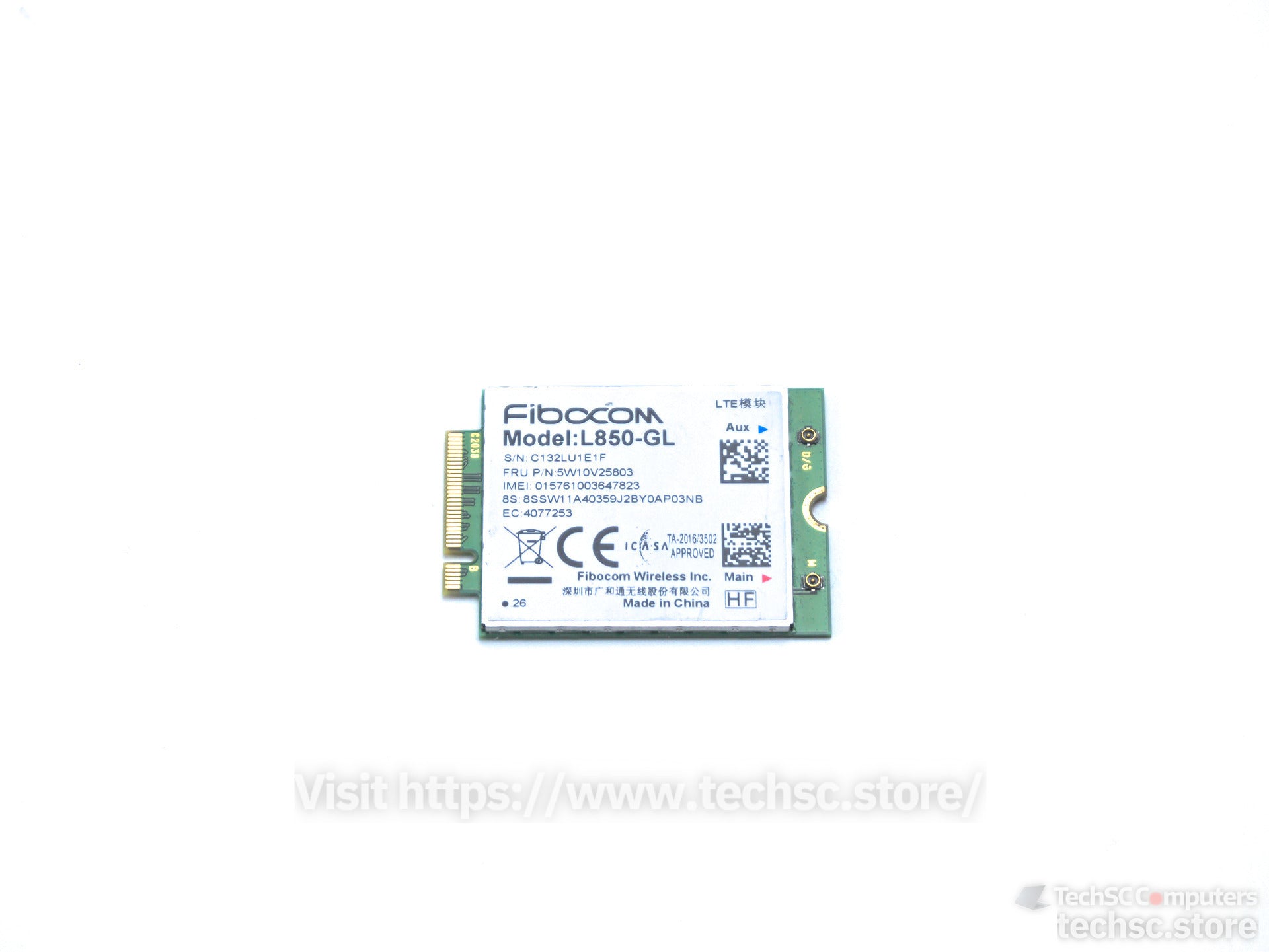

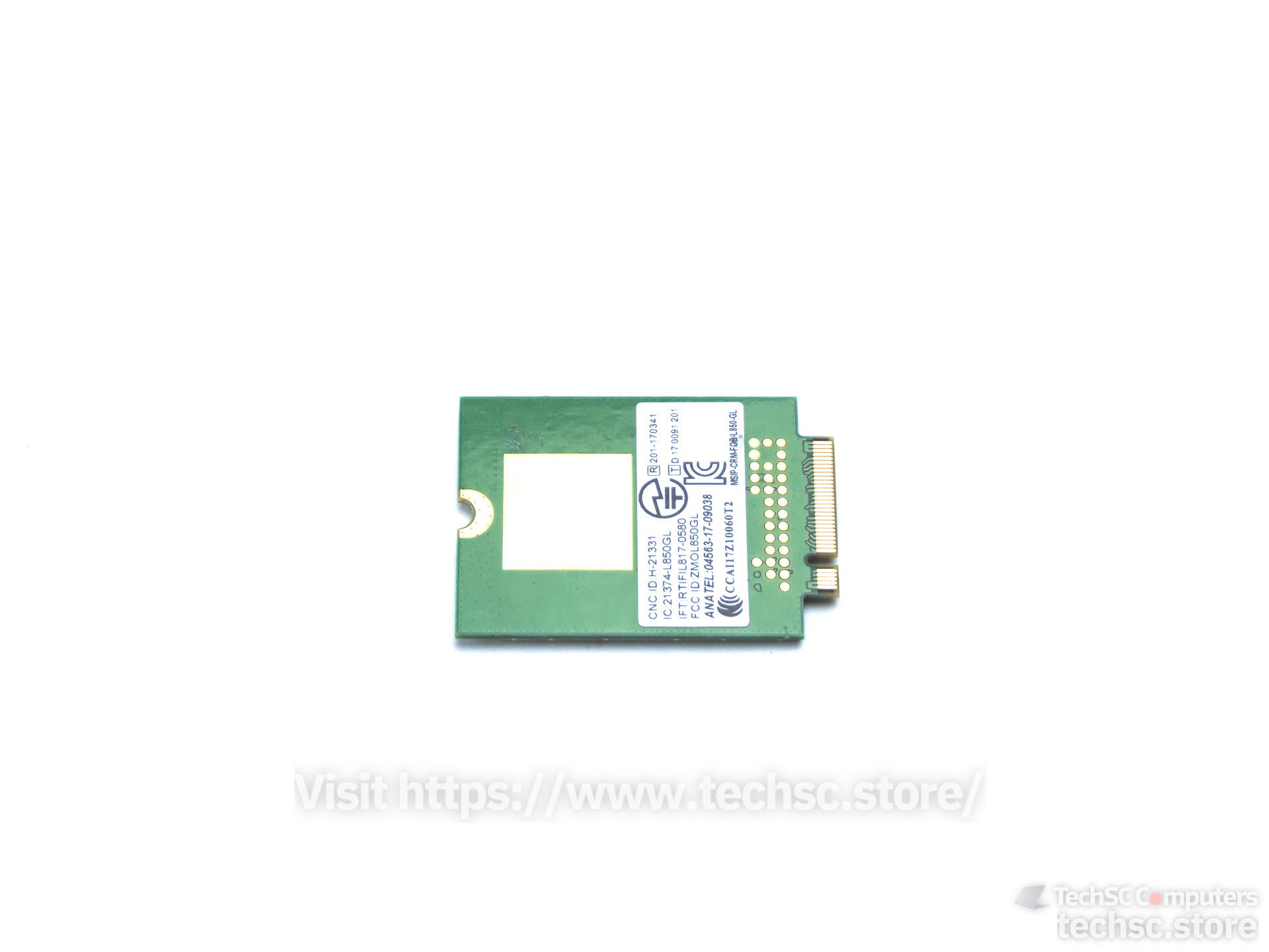

Lenovo Fibocom L850-GL Genuine 4G LTE CAT9 450Mbps WWAN M.2 Card (5W10V25803)

Internal 4G-LTE modem to allow for WWAN connectivity on select models. All cards fully unlocked and tested, local stock, pre-tested with 100% Australian-compliance, genuine and original, with quick shipping. Don't risk imitations or slow shipping from unknown suppliers. Buyer assumes responsibility for checking compatibility with laptop before buying. Machine should have requisite antennas and SIM-card tray.

MODEL: L850-GL
FRU P/N: 5W10V25803
EC: 4077253
CNC ID: H-21331
IC: 21374-L850GL
IFT: RTIFIL817-0580
FCC ID: ZMOL850GL

Suitable models (guide only, may also include others not listed):

- Lenovo ThinkPad T14 Gen 1 AMD (MT 20UD/20UE)
- Lenovo ThinkPad T14S Gen 1 AMD (MT 20UH/20UJ)
- Lenovo ThinkPad X12 Tablet Gen 1 (MT 20UW/20UV)
- Lenovo ThinkPad X13 Gen 1 AMD (MT 20UF/20UG)
- Lenovo ThinkPad X1 Titanium Yoga Gen 1 (MT 20QA/20QB)

Not suitable for your machine or not sure which one you need?
See our range of other WWAN cards or send us a message.

From manufacturer website:

L850-GL LTE Module Technical Specifications

Band Support
LTE FDD: Band 1,2,3,4,5,7,8,11,12,13,17,18,19,20,21,26,28,29,30,66
LTE TDD: Band 38,39,40,41
WCDMA: Band 1,2,4,5,8

Data
LTE FDD: 450Mbps DL, 50Mbps UL
LTE TDD: 347Mbps DL, 30Mbps UL
UMTS: 385Kbps DL, 385Kbps UL
DC-HSUPA+:42Mbps DL , 5.76Mbps UL
SMS: MO/MT Text and PDU modes
Cell broadcast

Form Factor: M.2 30.0×42.0×2.3 mm
Current Consumption: 6mA@sleep mode(DRX9)

AT Command Set:
FIBOCOM proprietary AT commands/GSM 07.05/GSM 07.07
Interface

Power Supply:
3.135V~4.4V(Tipical 3.3v)

Operating Temperature:
-20°C~+65°C

For more information:
http://www.fibocom.com/Private/ProductFiles/031599e8ebdfed037e03.pdf
